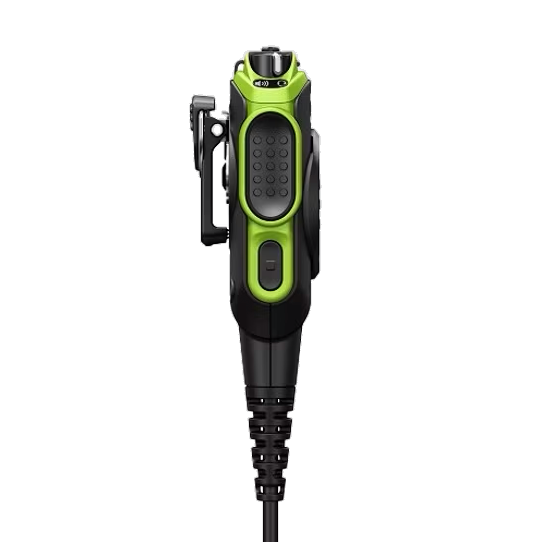

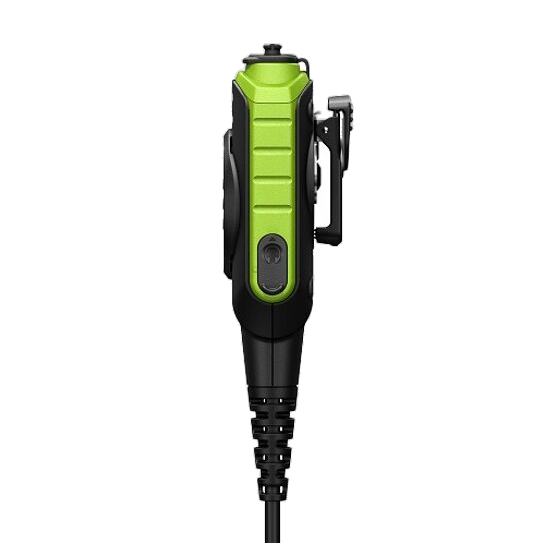

Motorola NS750 IMPRES™ RSM remote speaker microphone is engineered for critical communications in the harshest environments. Dual oversized PTT buttons, Smart Audio Switching and a rugged IP68-rated design let you focus on the mission, not the device.
Overview & Benefits
-
Dual large PTT buttons (front & side) with tactile feedback for immediate transmission
-
Smart Audio Switching — auto-toggle between RSM speaker and Secondary Audio Accessory (SAA) with alert tone reminder
-
Windporting design — crystal-clear voice in wind and high-noise settings
-
Ruggedized, waterproof housing: high-impact green bezel, IP68 dust & water protection
-
Programmable button for quick feature access
-
360° swivel clip with D-ring for versatile mounting
Specifications
Parameter | Value |
---|---|
Model | PMMN4150 (long cable) / PMMN4151 (short cable) |
Compatible Radios | MOTOTRBO R7 [VHF/UHF], MXP600 [UHF] |
Dimensions (head only) | 68 × 94 × 29 mm |
Weight (kit) | PMMN4150: 296 ± 5 g; PMMN4151: 238 ± 5 g |
Housing Material | High-impact polymer with green bezel |
Connectors | 4-pole Nexus interface (TX/RX), 3.5 mm audio jack (receive only) |
Microphone | Electret ECM, sensitivity −35 ± 2 dBV, THD ≤ 5 % |
Speaker | Ø 36 mm; THD < 15 %; max output 2.5 W |
Cable | PMMN4150: 490 mm (coiled)–1700 mm (extended); PMMN4151: 250–480 mm; UL 94 V0; ≥ 40 lbs; ≥ 1 000 000 flex cycles |
Ingress Protection | IP64, IP66, IP67, IP68 |
Operating Temperature | −30…+60 °C |
Additional Features | IMPRES™ audio, Intelligent Audio, Alert Tone Reminder, Work-When-Wet |
Package Contents
-
NS750 IMPRES™ RSM remote speaker microphone
-
PMMN4150 or PMMN4151 cable (user’s choice)
-
User manual
Applications
Emergency services, security, utilities and industrial sites—where instant, reliable voice communication is critical under extreme conditions.
