In stock DL-MPBPKIT

Chasis with UPS for SC4400

Price on request
Price on request
Number:

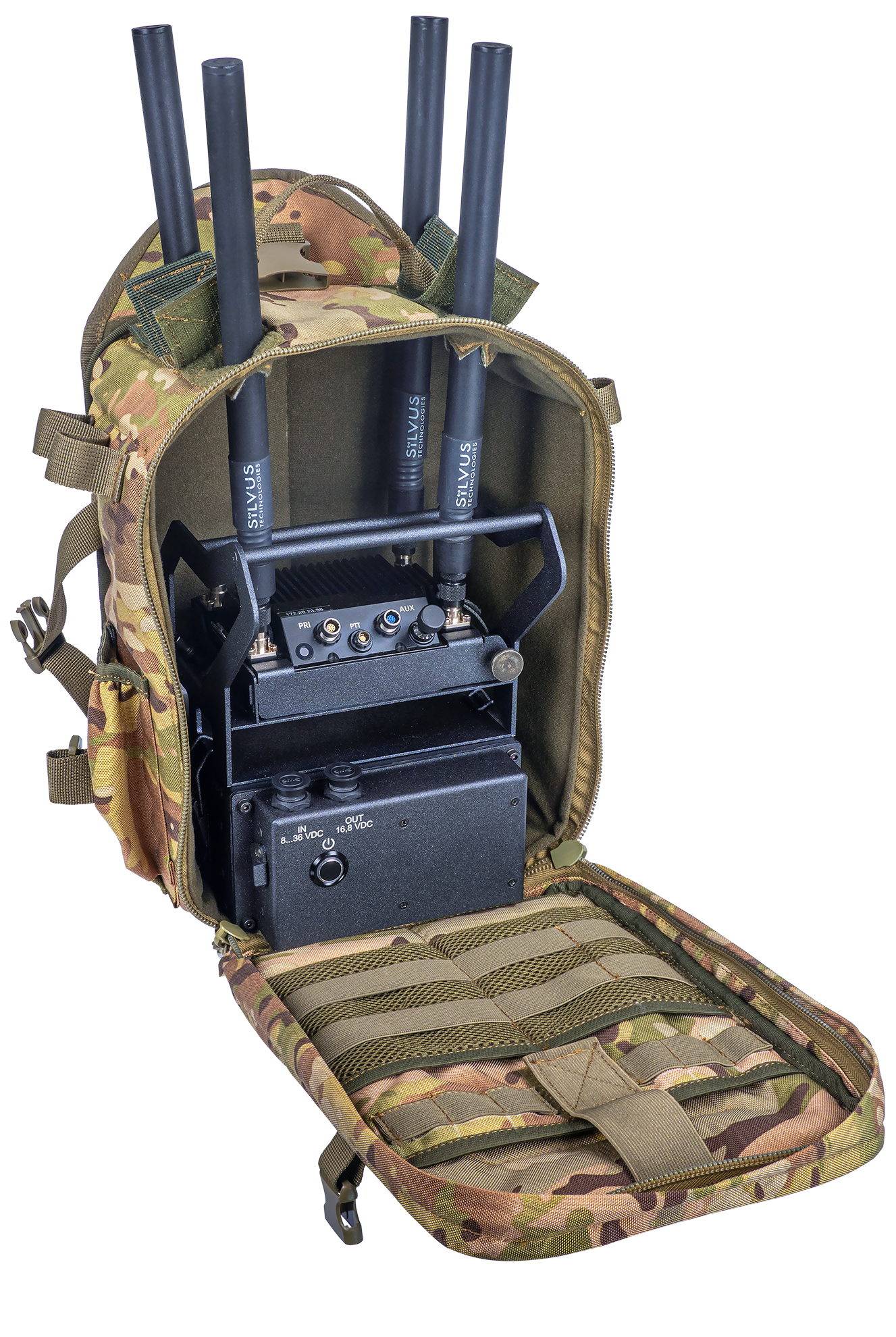

The chasis turns your Silvus SC4400 into a fully autonomous mobile radio node with guaranteed power from 220 VAC mains or any 8–36 VDC source. Rapid field deployment, a rugged enclosure and integrated Li-Ion battery make it ideal for critical communications in harsh environments.

Specifications

  • Compatible Radio: Silvus SC4400

  • Input Voltage Range: 8–36 VDC

  • Nominal Output Voltage: 16.8 V ± 3 %

  • Max Output Current: 15 A

  • Internal Battery (type 2590, Li-Ion):

    • Nominal 14.4 V

    • Maximum 16.8 V

    • Capacity 19.8 Ah ± 5 %

    • Charge current 3 A

  • Protections: reverse polarity, over-voltage (>36 V), over-current (>15 A), deep-discharge and over-charge of battery

  • Ingress Protection: IP54

  • Operating Temperature:40…+60 °C

  • Max Dimensions: 175 × 165 × 240 mm

  • Weight (with battery, without radio): 2.6 kg

Benefits

  • Hot-swappable internal battery without power interruption

  • Simultaneous battery charging and radio power feed

  • Ruggedized connector protection and input/battery-status LEDs

  • Fast swap-out of radio and battery

  • Packaged in a water-resistant backpack

  • Supports omnidirectional UHF, L-, S- and C-band antennas

  • Power on/off push-button

  • Can function as a UPS for your radio

Package Contents

  • DL-MPBPKIT housing with internal battery, 1 unit

  • DL-BGKIT-MP/1 backpack, 1 unit

  • DL-MPBPKIT/1 Switchcraft–Switchcraft power cable 0.3 m, 1 unit

  • DL-MPBPKIT/2 Switchcraft–ODU power cable 0.3 m, 1 unit

  • DL-MPBPKIT/4 vehicle “cigarette lighter” power cable 1.5 m, 1 unit

  • DL-MPBPKIT/5 BB-2590/U mains charger, 1 unit

  • DL-2590 Li-Ion battery, 2 units

Main
Type
Mobile Radio
General
Input power AC
180–250 V
Antenna connector type
N or UHF
Operating temperature
−30...+60 ˚С
