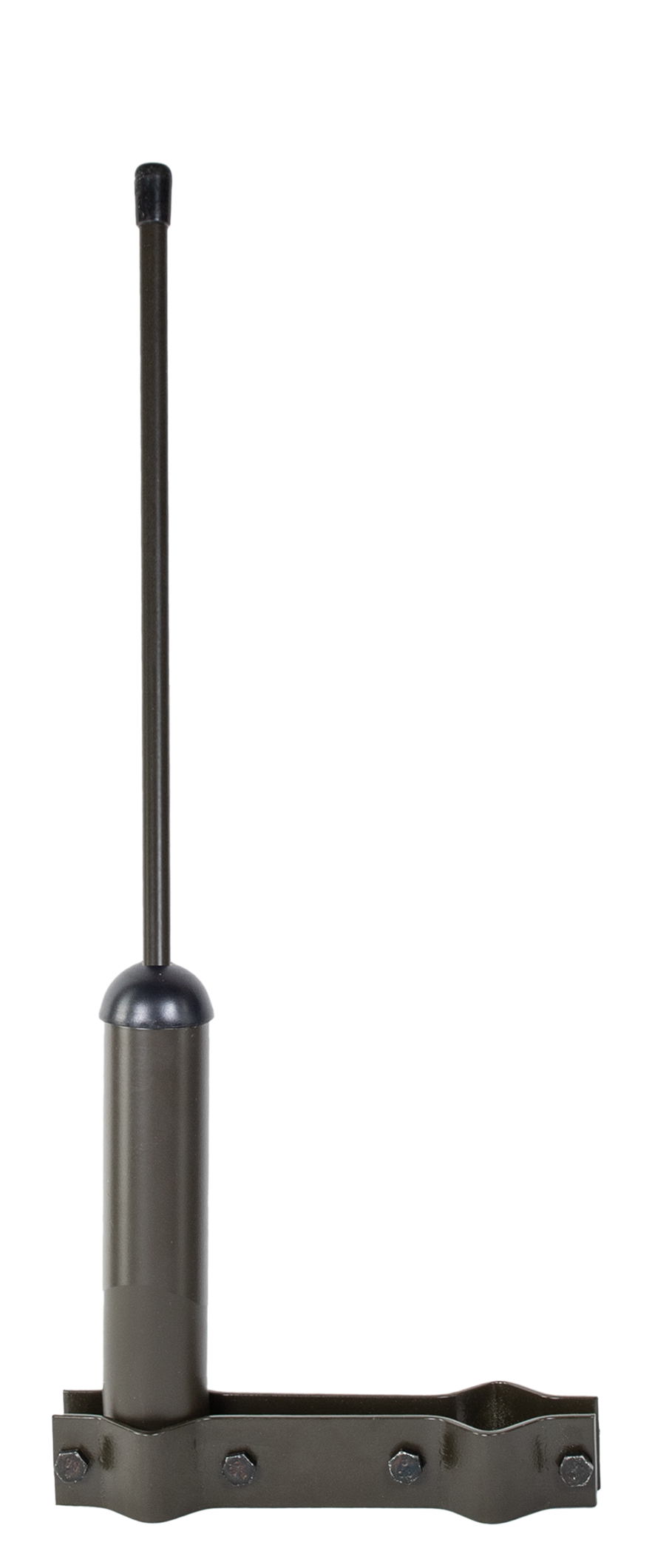

Agent-404U J-shaped Whip UHF Antenna Agent-404U J-shaped Whip UHF Antenna
Agent-404U J-shaped Whip UHF Antenna
Agent-404U J-shaped Whip UHF Antenna
In stock 404U

Agent-404U J-shaped Whip UHF Antenna

Price on request
Price on request
Number:
One-click Purchase
General
Power
200 W max
Connector type
Made to order
Length
A-404V: 1600 mm; A-404U: 500 mm
Operating frequency band (voltage standing-wave ratio = 1.5)
A-404V: 7 MHz; A-404U: 15 MHz
Amplification factor
6.5 dBi
Direction pattern in the horizontal plane
360˚
Direction pattern in the vertical plane
A-404V: ±40˚; A-404U: ±25˚
Wind load
A-404V: 120 m/sec; A-404U: 40 m/sec
Polarisation
Vertical
Mast diameter
A-404V: 35–55 mm; A-404U: 30–70 mm
Frequency
400–470 MHz
Operating temperature
−40...+60 ˚С
