In stock Agent-102.3

AGENT-102.3 fixed DMR trunked base station built on the DM4XXX platform

Price on request
Price on request
Number:
 AGENT-102.3 fixed DMR trunked base station built on the DM4XXX platform Download specifications *.pdf
 AGENT-102.3 fixed DMR trunked base station built on the DM4XXX platform

AGENT-102.3 is a fixed DMR trunked base station built on the DM4XXX platform, designed for corporate and public safety networks. It offers programmable RF power, dual AC/DC power inputs, battery backup support, and integrated lightning protection.

Key Features

  • Frequency Bands: 136–174 MHz & 403–470 MHz

  • Output Power (programmable):

    • VHF: 1–25 W & 25–45 W

    • UHF: 1–25 W & 25–40 W

  • Receiver Sensitivity (5 % BER): 0.16 µV

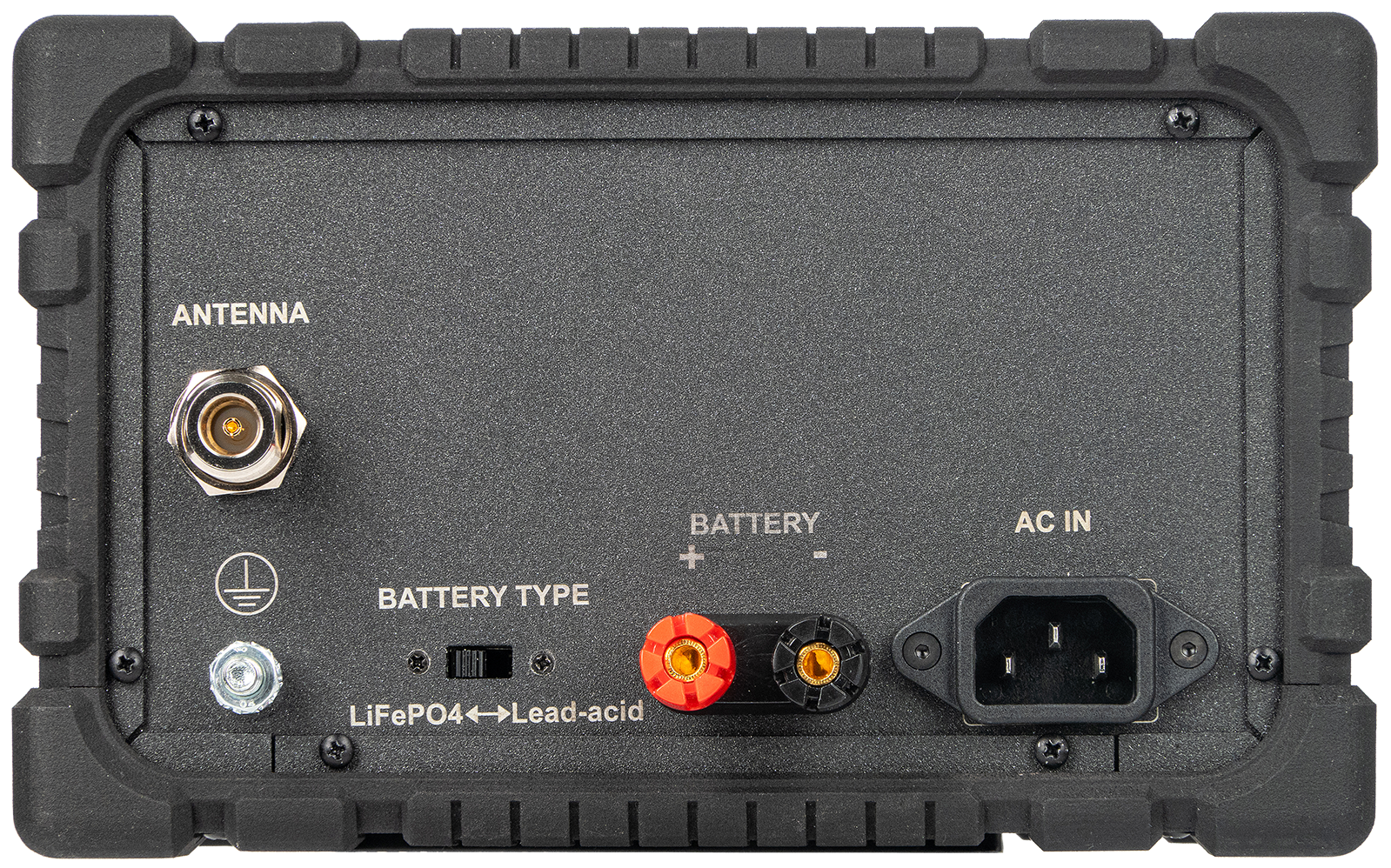

  • Power Inputs:

    • DC 9–36 V or AC 80–264 V

    • External battery backup (12 V/12 Ah LiFePO₄ or lead-acid)

  • Current Draw (at 13.6 V):

    • Standby up to 2 A

    • Transmit up to 14.5 A (depending on power level)

  • Protection: IP20 enclosure, built-in RF surge protector

  • Dimensions/Weight: 280 × 205 × 125 mm, 5.5 kg

Benefits & Interfaces

  • Front-panel power on/off switch

  • Front-accessory port for on-site programming

  • Rugged transport case included

  • Easy integration into existing networks with guaranteed backup power

Main
Type
fixed DMR trunked base station built on the DM4XXX platform
Dimensions
280 х 205 х 125 mm
General
Input power AC
100–220 V
Weight
5.5 kg
Operating temperature
−30...+60 ˚С
